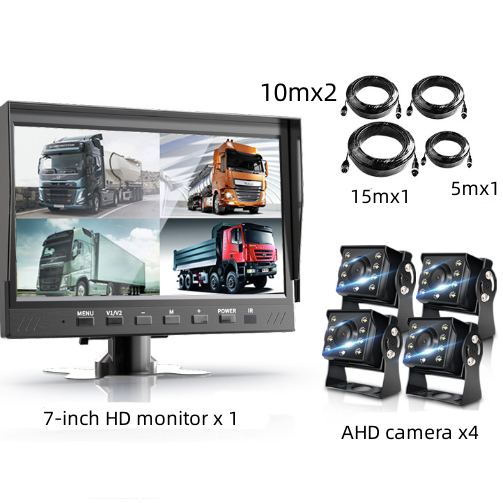

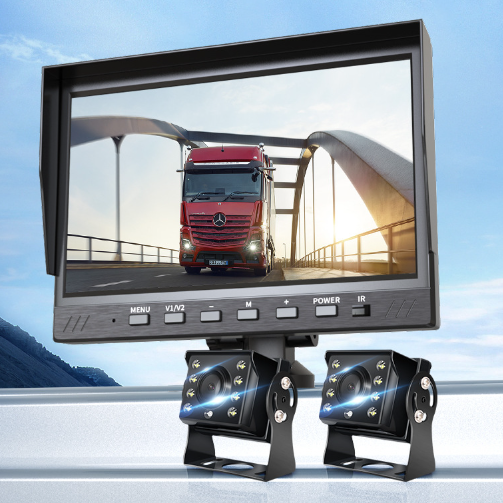

Wired Backup Camera System
Improve rear visibility with this 7-inch wired backup camera system, featuring a 1080P HD camera and quad split-screen monitor for monitoring multiple camera views. The system supports PAL/NTSC and AHD video signals, with infrared-assisted night vision for low-light conditions. Designed for trucks, trailers, RVs, campers, buses and other larger vehicles, it provides a practical rearview monitoring solution.
Features:
- 1080P Full HD Camera: Supports FHD 1080P resolution for clear video and detailed rear views.
- 7-Inch HD Monitor: Features a 7-inch LED display with a 1024 × 600 resolution.

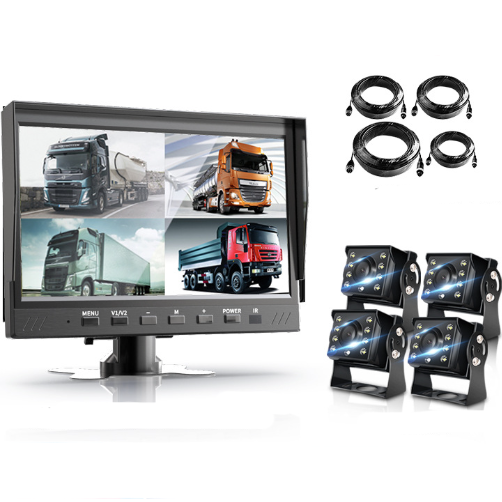

- Quad Split Screen: Supports quad-view display for monitoring multiple camera feeds where applicable.
- Night Vision: Infrared-assisted night vision supports visibility in very low-light conditions.
- AHD Video Signal: Uses AHD video technology for high-definition video transmission.
- PAL/NTSC Support: Compatible with both PAL and NTSC video systems.

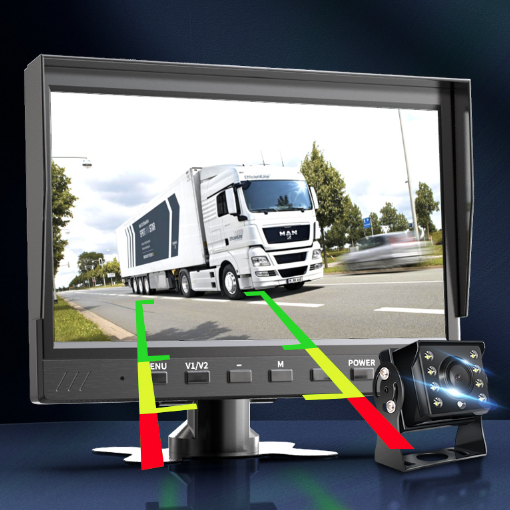

- Reverse Priority Display: Designed to prioritise the rearview camera display when reversing.
- Wide Vehicle Compatibility: Suitable for trucks, trailers, heavy vehicles, RVs, campers and buses.
- 12V-24V Monitor Power Supply: The monitor supports a DC12V-24V power supply for compatible vehicle electrical systems.
- Durable Operating Range: Designed to operate in temperatures from -20°C to 70°C.
- 15 Language Options: The monitor supports 15 different languages for convenient setup and operation.
- Wired Connection: Uses a 4-pin aviation connector for the camera video connection.
Specifications:

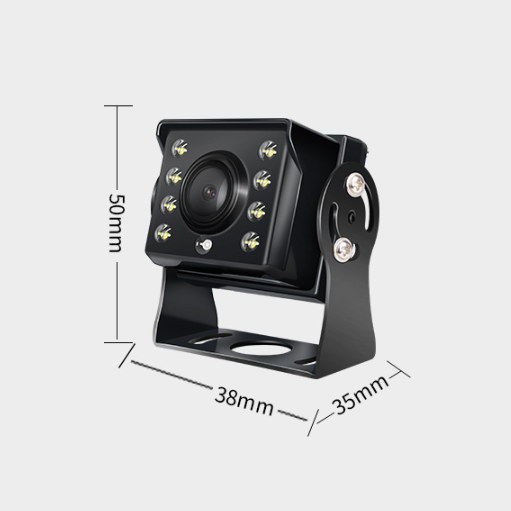

Camera Parameters
- Image Sensor: 1/2.9" CMOS
- Resolution: 1080P (1920 × 1080)
- Minimum Illumination: 0.1Lux @(AGC ON), 0Lux with IR
- F/NO: 2.4
- Day/Night Mode: Colour
- Video Connector: 4-Pin Aviation Connector (Female)
- Rated Operating Current: 65mA
- Video System: PAL/NTSC
- Effective Pixels: 1MP
- Lens: 4G
- Lens Focal Length: 2.8mm
- Video Signal: AHD
- Nominal Operating Voltage: 12V DC

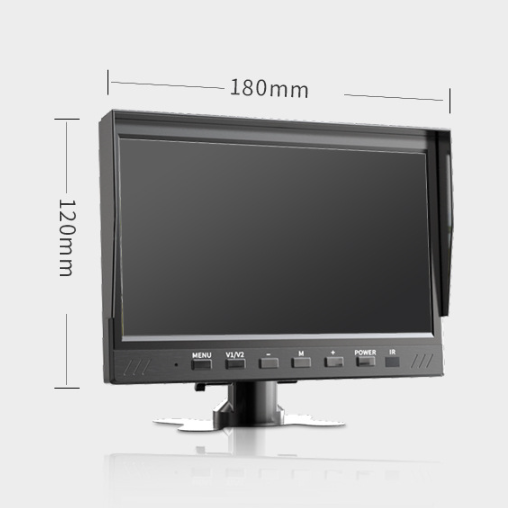

Display Parameters
- Screen Size: 7 inches
- Display Technology: LED
- Power Supply: DC12V-24V
- Resolution: 1024 × 600
- Power Consumption: Approx. 7W
- Contrast Ratio: 350:1
- Operating Temperature: -20°C to 70°C
- Signal Format: PAL/NTSC
- Response Time: Less than 12ms
- Brightness: 500
- Languages: 15
- Display Area: 7 inches diagonal
- Mounting: Stand
- Input Connector: Aviation Head
- Display Feature: Reverse Priority Display
Package Includes:
- 1 × 7-Inch Truck Wired Backup Camera Set
Frequently Asked Questions
What size monitor does this backup camera system include?
The system includes a 7-inch LED monitor with a 1024 × 600 display resolution.
What video resolution does the backup camera support?
The camera supports 1080P Full HD resolution at 1920 × 1080.
Does the backup camera have night vision?
Yes. The camera supports infrared-assisted night vision and can operate with 0Lux illumination when IR is active.
Does the monitor support quad split-screen viewing?
Yes. The system is designed with quad split-screen functionality for monitoring multiple camera views where applicable.
What vehicles is this backup camera system suitable for?
The system is suitable for larger vehicles such as trucks, trailers, RVs, campers and buses.
What power supply does the monitor use?
The monitor supports a DC12V-24V power supply.
Does the system support PAL and NTSC?
Yes. Both the camera and monitor support PAL/NTSC video formats.
Does the system prioritise the rear camera when reversing?
Yes. The monitor features reverse priority display functionality designed to prioritise the rearview camera when reversing.
What connector does the camera use?
The camera uses a 4-pin aviation connector for its video connection.
What is included with the backup camera system?
The package includes 1 complete 7-inch truck wired backup camera set.
