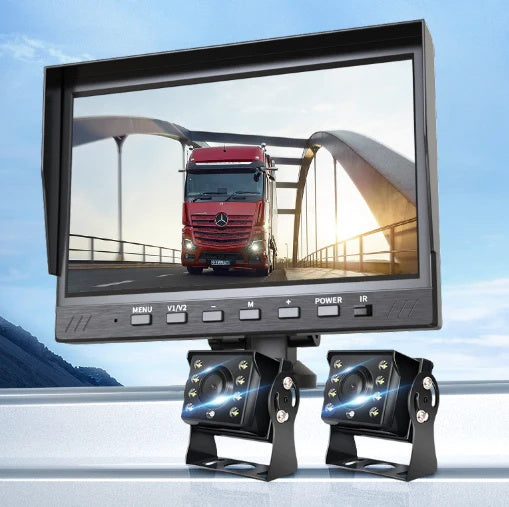

Truck Reverse Camera System

Features:

• 7-Inch LED Display: High-resolution 7-inch monitor for clear viewing, compatible with a range of devices.
• 1080p High-Resolution Camera: Equipped with a 1/2.9" CMOS image sensor, providing 1080p resolution for sharp and clear images.
• Day/Night Mode: The camera switches between color mode for daytime and IR mode for low-light conditions, ensuring visibility at all times.
• Wide Compatibility: The system supports PAL/NTSC video formats and comes with a 4-pin aviation connector for secure and reliable connections.
• Robust and Durable: The camera and display are built to withstand harsh conditions with operating temperatures ranging from -20° to 70°C, making it ideal for truck environments.

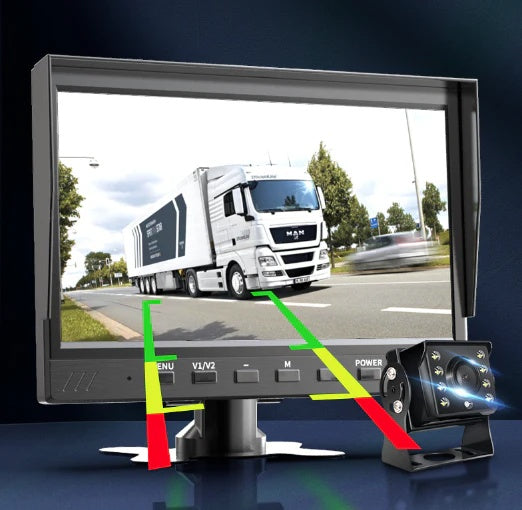

• Reverse Priority Display: Automatically activates the display when reversing, providing immediate and clear visuals for safer maneuvering.


Specifications:

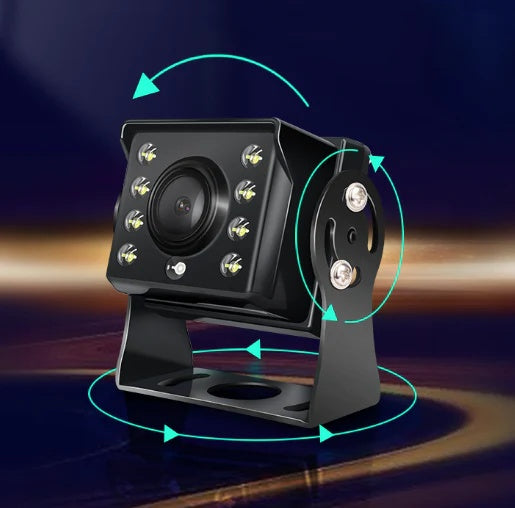

Camera Parameters

• Image Sensor: 1/2.9" CMOS
• Resolution: 1080p (1920x1080)
• Minimum Illumination: 0.1 Lux (AGC ON), 0 Lux with IR
• F/NO: 2.4
• Day/Night Mode: Color/IR
• Video Connector: 4-pin aviation connector (female)
• Operating Current: 65mA
• Video System: PAL/NTSC
• Effective Pixel: 1MP
• Lens: 4G, 2.8mm focal length
• Video Signal: AHD
• Operating Voltage: 12V DC

Display Parameters

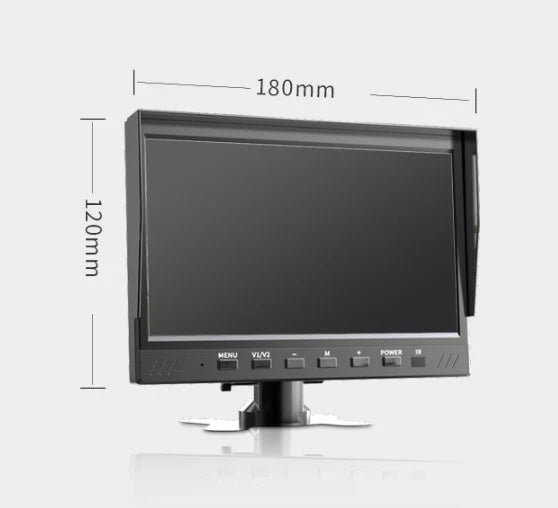

• Size: 7 inches
• Resolution: 1024x600
• Power Supply: DC 12V-24V
• Power Consumption: Approx. 7W
• Contrast Ratio: 350:1
• Operating Temperature: -20° to 70°C
• Signal Format: PAL/NTSC
• Response Time: Less than 12ms
• Brightness: 500 cd/m²
• Language: Supports 15 languages
• Mounting: Stand
• Input Connector: Airline Head
• Features: Reverse priority display for enhanced safety.


Package Includes:

• 1 x Truck Reverse Camera System
