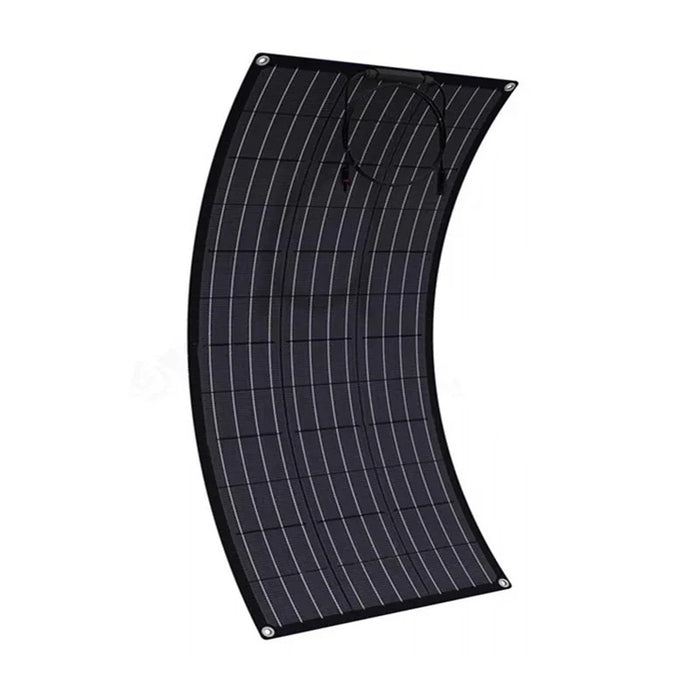

Flexible Solar Panel

Features:

• 9BB Mono Solar Cell: Featuring a 9BB mono solar cell, this product ensures efficient and reliable solar energy conversion.

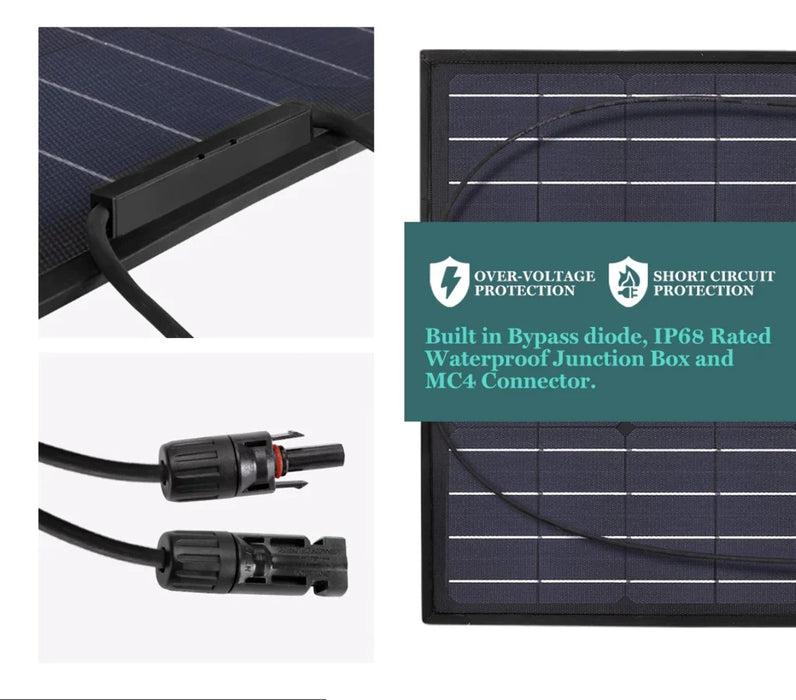

• Layered Design: The transparent backsheet serves as the first layer, followed by a black backsheet and a strip junction box with a 90cm MC4 connector, providing a well-structured and functional solar solution.
• Long-Term Power Assurance: Benefit from a 25-year power output guarantee, assuring consistent performance and reliability over an extended period.
• Wide Temperature Range: With a temperature range from -40°C to +85°C, this solar cell excels in diverse environmental conditions, ensuring optimal functionality.
• Power Tolerance: Boasting a power tolerance of ±2%, this solar cell delivers precise and reliable power output, enhancing its performance.
• Standard Test Conditions: Tested under standard conditions of 1000W/m2, AM1.5, and 25°C, this solar cell meets industry benchmarks for accurate assessment and comparison.

Specifications:

• Maximum Power(Pmax): 120W, 150W or 200W
• Max Power Voltage 19.60V
• Max Power Current 7.65A
• Open-Circuit Voltage 23.3V
• Short-Circuit Current 8.42A
• Maximum System Voltage 1000VDC
• Temperature Range -40°C to +85°C
• Power Tolerance ± 2%
• Standard Test Conditions 1000W/m2, AM1.5, 25°C
• Solar Cell Mono

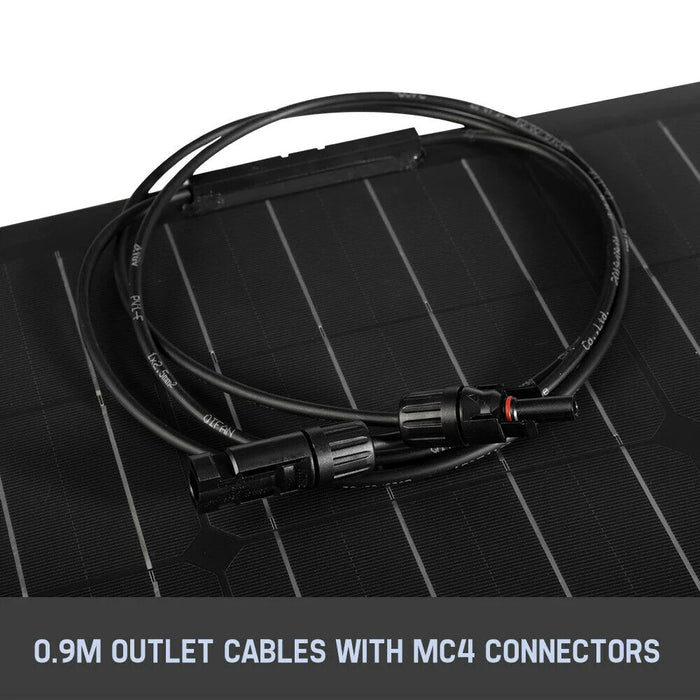

• 90cm MC4 Connector


Product Dimensions:

• Solar Panel 120W: 930 x 670 x 3mm
• Solar Panel 150W: 1240 x 670 x 3mm
• Solar Panel 200W: 1500 x 670 x 3mm

Package Includes:

• 1x Flexible Solar Panel
