Automatic Roller Door Opener

$276.90 - $276.90
$276.90
$276.90 - $276.90
$276.90

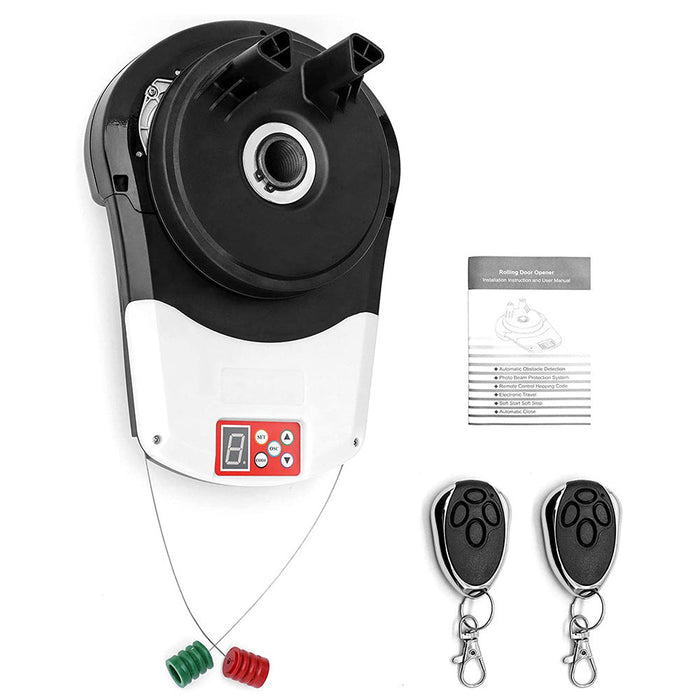

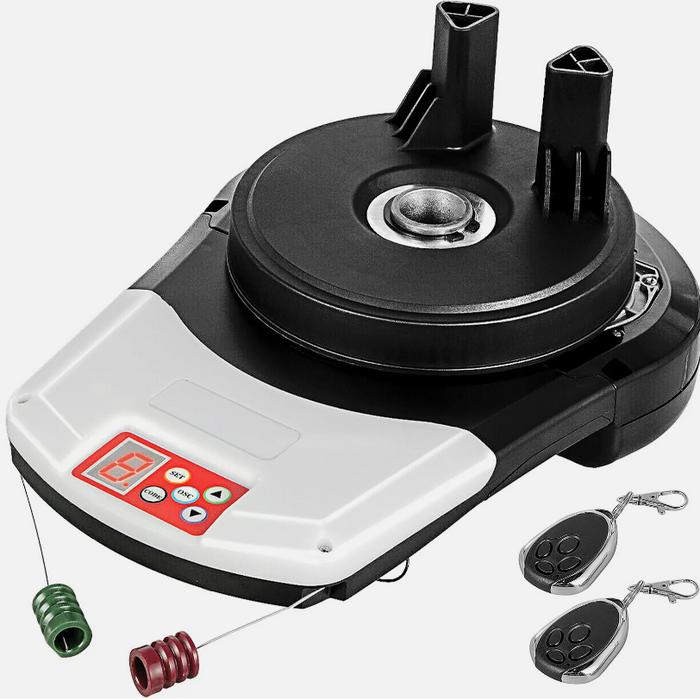

Make opening and closing your garage more convenient with this automatic roller door opener featuring an 800N lifting force, 24V control system and powerful pure copper motor. Designed for compatible roller doors up to 25m², it includes two remote controls with rolling-code technology, obstruction detection and overload protection for added convenience and safety.

Features:

  • 800N Powerful Motor: Provides up to 800N of lift force for compatible roller doors.
  • 25m² Door Capacity: Designed for roller doors with a maximum opening area of 25m².
  • Pure Copper Motor: Built with a pure copper motor for reliable operation.
  • Remote Control Operation: Includes two remote controls with a maximum control distance of up to 50m.
  • Rolling Code Security: Uses rolling-code technology with over 4.29 billion random code combinations.
  • Obstruction Detection: Designed to detect obstructions during operation for added safety.
  • Overload Protection: Helps protect the opener from excessive load during operation.

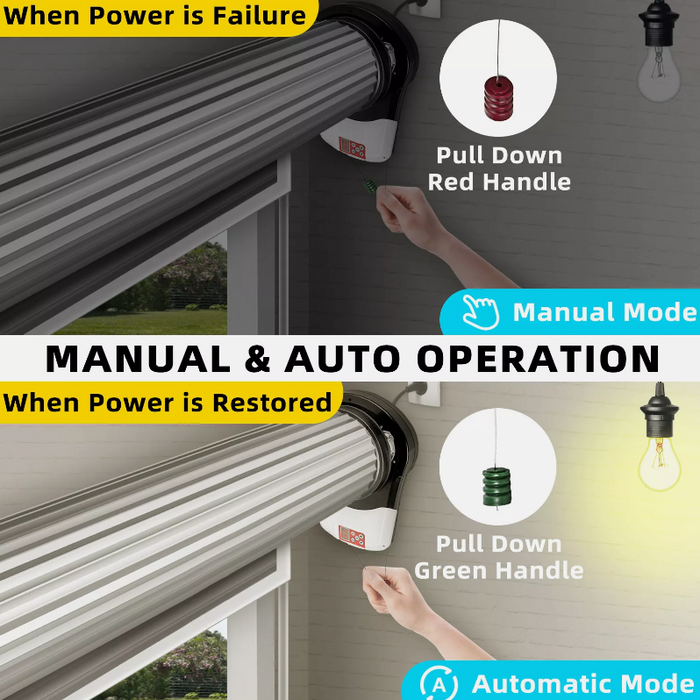

  • Manual Release: Allows the door to be opened manually during a power failure.
  • Built-In Courtesy Light: Low-power LED light automatically activates when the door is operated.

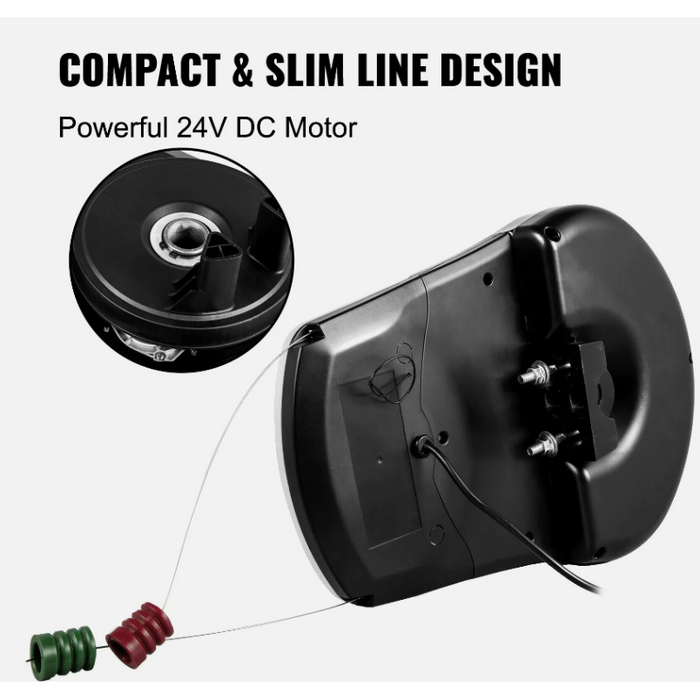

  • Slimline Design: Compact housing is designed for installation where side clearance is limited.
  • Quiet Operation: Designed for smooth and relatively quiet operation.
  • Easy Installation: Suitable for compatible roller-up doors with the required mounting clearance.
  • 50m Remote Range: Allows convenient operation from a distance of up to 50 metres under suitable conditions.

Specifications

  • Product Type: Automatic Roller Door Opener
  • Input Voltage: 220V AC
  • Motor Power: 100W
  • Motor Type: Pure Copper Motor
  • Max Lift Force: 800N
  • Maximum Lifting Weight: 38kg
  • Opening Speed: 0.15–0.2m/s
  • Maximum Door Opening Area: 25m²
  • Maximum Door Height: 5m
  • Control Board Voltage: 24V DC / 5V DC
  • Light Voltage: 36V / 1.5W
  • Maximum Control Distance: 50m
  • Coding Type: Rolling Code
  • Transmitter Frequency: 433.92MHz
  • Code Combinations: Over 4.29 billion random codes

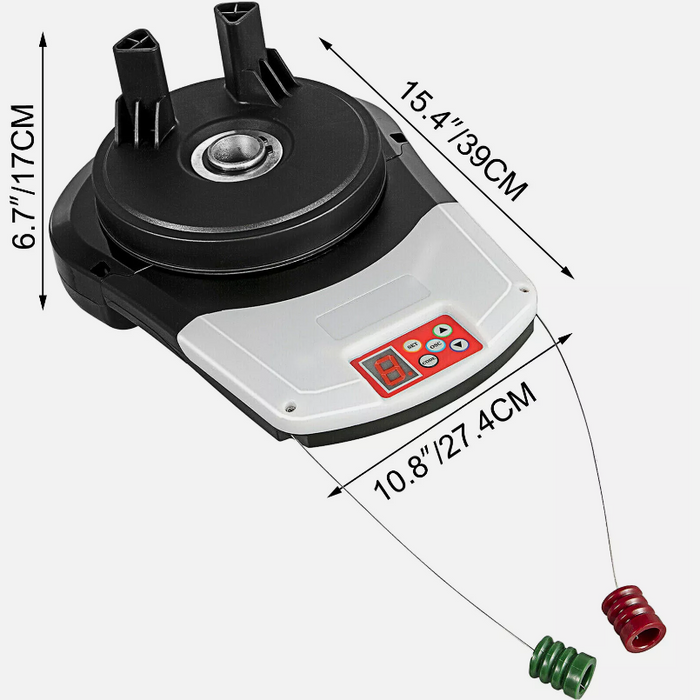

  • Product Dimensions: 27.4 × 39 × 17cm

Package Includes:

  • 1 × Gate Opener
  • 2 × Garage Remote Controls
  • 1 × Instruction Manual

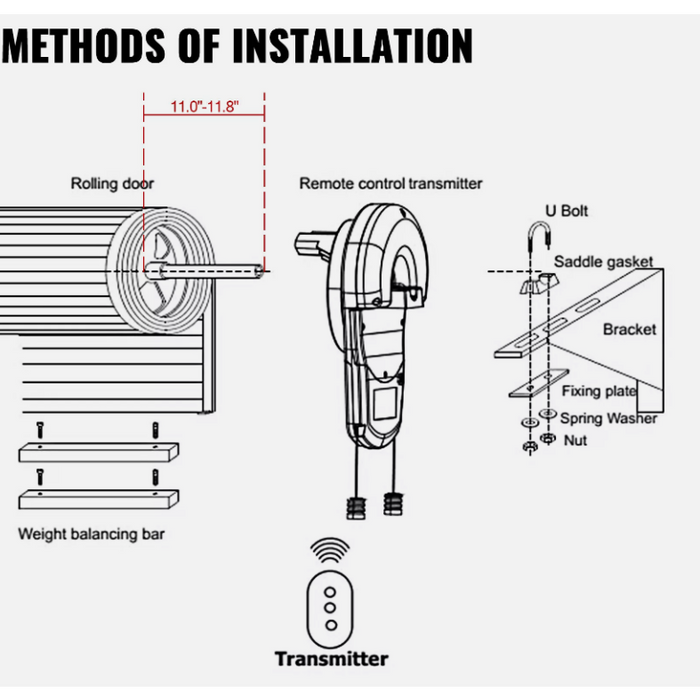

Note: The weight balancing bar is not included and must be purchased separately.

Frequently Asked Questions

What type of door is this opener designed for?

This automatic opener is designed for compatible roller-up and rolling garage doors.

What is the maximum door size?

The opener is specified for doors with a maximum opening area of 25m² and a maximum door height of 5 metres.

What is the lifting capacity of this roller door opener?

The opener has a maximum lifting force of 800N and a specified maximum lifting weight of 38kg.

How far away can I operate the garage door?

The remote controls have a maximum control distance of up to 50 metres under suitable conditions.

How many remote controls are included?

The package includes two garage remote controls.

Does the opener use rolling-code technology?

Yes. The opener uses rolling-code technology with over 4.29 billion random code combinations.

Does the roller door opener have safety protection?

Yes. It features overload protection and obstruction detection to help improve operating safety.

Can I open the garage door during a power failure?

Yes. The opener includes a manual release mechanism that allows the door to be opened manually if power is unavailable.

Does this roller door opener include a courtesy light?

Yes. It features a low-power LED courtesy light that automatically activates when the door is operated.

What voltage does the roller door opener require?

The opener has an input voltage of 220V AC. Its control board operates at 24V DC / 5V DC.

What is the opening speed?

The specified opening speed is approximately 0.15–0.2 metres per second.

Is the weight balancing bar included?

No. The weight balancing bar is not included with this product and needs to be purchased separately.

What is included in the package?

The package includes 1 gate opener, 2 garage remote controls and 1 instruction manual.
