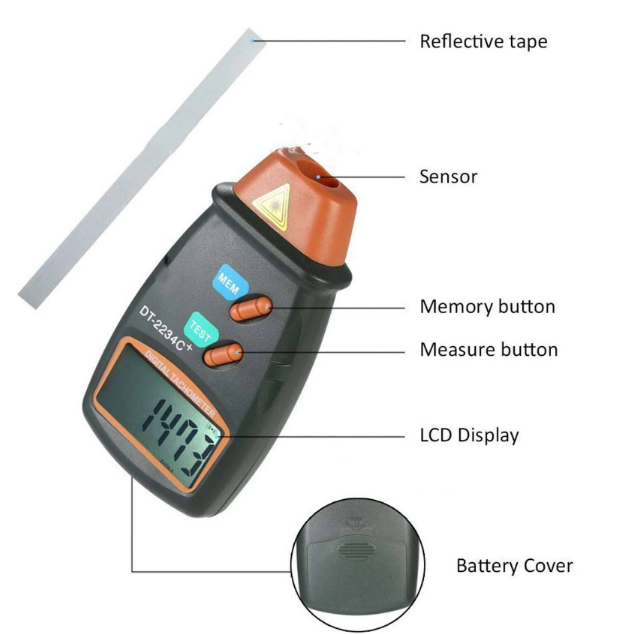

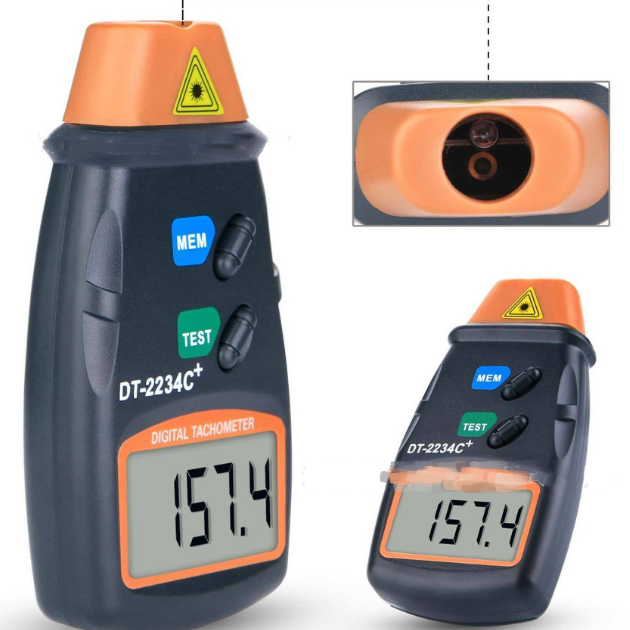

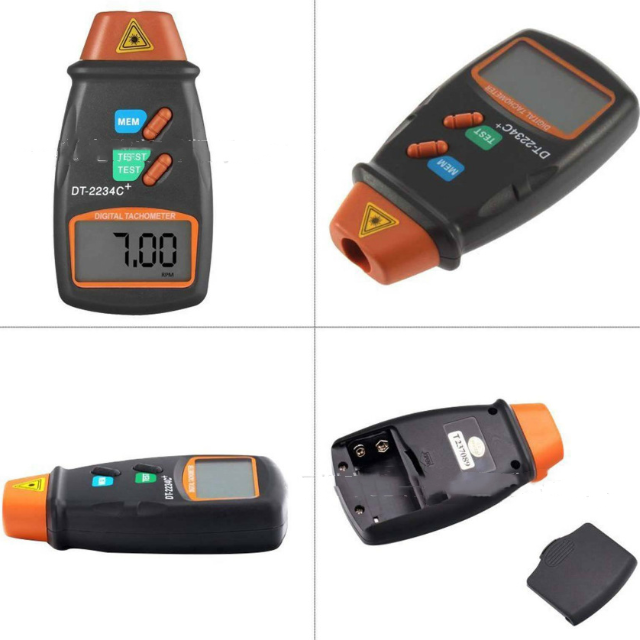

Automatic Non-Contact Digital Laser Photo Tachometer
Measure rotational speed quickly and accurately with this non-contact digital laser tachometer. Designed for safe RPM measurement without touching moving components, this handheld speed meter features a large 5-digit LCD display, automatic testing and a wide measuring range of up to 99,999 RPM. It is a practical tool for workshops, machinery maintenance, woodworking, metalworking and applications such as checking the speed of a lathe.
Features:
- Non-Contact RPM Measurement: Uses laser photo detection to measure the rotational speed of moving objects without physical contact.
- Wide Measuring Range: Measures rotational speeds from 2.5 to 99,999 RPM for a variety of applications.
- High Resolution: Provides 0.1 RPM resolution from 2.5 to 999.9 RPM and 1 RPM resolution above 1,000 RPM.
- Large LCD Display: Features a clear 5-digit, 18mm LCD screen for easy reading of measured values.
- Automatic Testing: Automatic test selection makes operation straightforward without complicated manual settings.
- Memory Function: Stores the last measured value along with maximum and minimum RPM readings for convenient reference.
- Comfortable Handheld Housing: The ergonomically shaped housing is designed to fit comfortably in either hand.

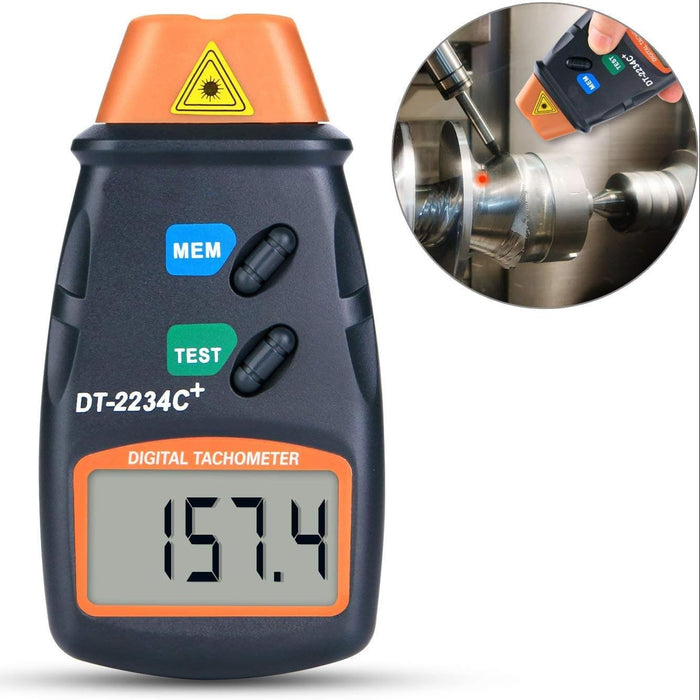

- Workshop Applications: Suitable for checking the speed of lathes and other rotating machinery in woodworking, metalworking and general maintenance applications.
Specifications:
- Product Type: Non-Contact Digital Laser Photo Tachometer
- Display: Large 5-digit, 18mm LCD
- Test Selection: Automatic
- Measuring Range: 2.5 to 99,999 RPM
- Resolution: 0.1 RPM from 2.5 to 999.9 RPM; 1 RPM above 1,000 RPM
- Accuracy: ±(0.05% + 1 digit)
- Measuring Distance: 50 to 500mm / 2 to 20 inches
- Memory: Last value, maximum value and minimum RPM

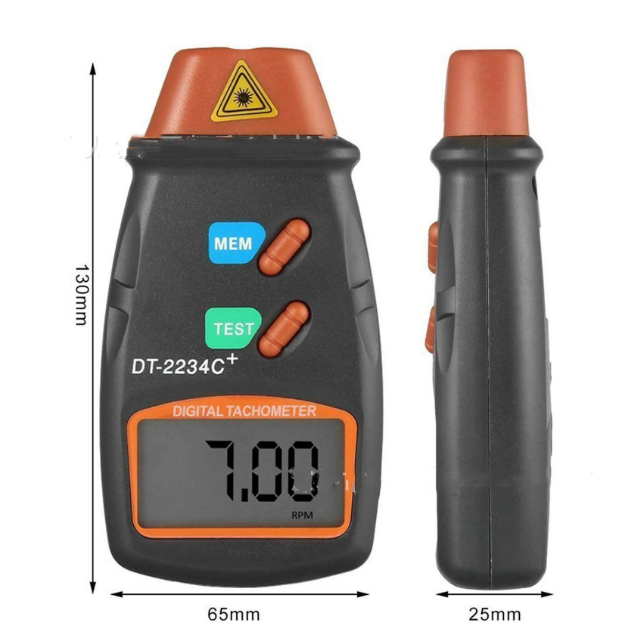

- Size: Approx. 130 x 70 x 29mm
- Weight: Approx. 160g
Package Includes:
- 1 x Digital Tachometer
- 1 x English Manual
- 1 x Carrying Bag
- 1 x Battery
- 1 x Reflective Tape
# Frequently Asked Questions
Frequently Asked Questions
What is this digital tachometer used for?
This digital tachometer is designed to measure the rotational speed of moving objects in RPM without physical contact. It can be used for machinery, lathes and other rotating equipment.
Is this tachometer non-contact?
Yes. The laser photo tachometer measures rotational speed without requiring physical contact with the moving component.
What is the RPM measuring range?
The tachometer measures rotational speeds from 2.5 to 99,999 RPM.
What is the resolution of the tachometer?
The resolution is 0.1 RPM from 2.5 to 999.9 RPM and 1 RPM for measurements above 1,000 RPM.
What is the measuring distance?
The recommended measuring distance is approximately 50 to 500mm, or 2 to 20 inches.
Does the tachometer have a memory function?
Yes. The tachometer can retain the last measured value as well as maximum and minimum RPM readings.
Is the display easy to read?
Yes. It features a large 5-digit LCD display with 18mm digits for clear reading of RPM measurements.
Can this tachometer be used for a lathe?
Yes. It can be used to accurately measure the rotational speed of a lathe and other rotating machinery.
What is included with the tachometer?
The package includes one digital tachometer, English manual, carrying bag, battery and reflective tape.
