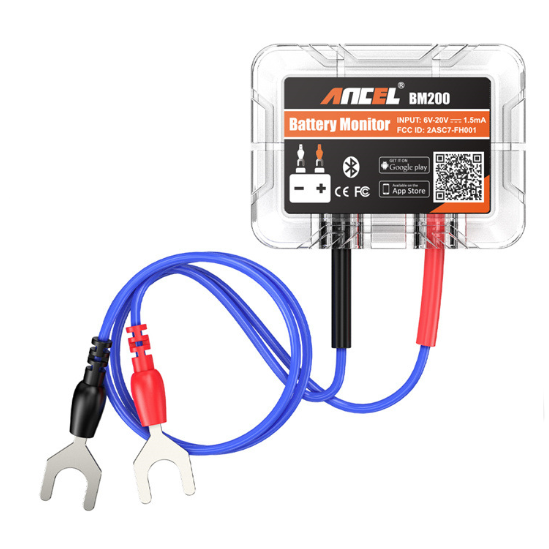

AnCEL battery monitor with cables on a white background

ANCEL BM200 12V Car Battery Monitor

Save $6.00 Save $6.00
$55.90
$55.90 - $55.90
$55.90
$49.90
$49.90 - $49.90
$49.90

Keep track of your vehicle battery with the ANCEL BM200 Battery Monitor, a compact Bluetooth battery monitoring device designed for 12V lead-acid and LiFePO4 starting batteries. It provides real-time battery voltage, charge level and temperature information through the app, while also monitoring the vehicle’s starting and charging systems. With historical data storage, trip tracking and built-in reverse connection and short-circuit protection, it provides a convenient way to monitor battery performance and vehicle usage.

Features:

  • Real-Time Battery Monitoring: View battery voltage, charge percentage and temperature in real time.
  • Bluetooth 4.2: Connects to your compatible mobile device using Bluetooth 4.2.
  • Starting & Charging System Monitoring: Automatically monitors the vehicle's starting and charging systems and provides notifications when abnormalities are detected.
  • Historical Data Storage: Stores battery voltage, charge percentage and temperature data for up to 30 days.
  • Battery Usage Tracking: Saves historical readings every 2 minutes to help track battery usage over time.

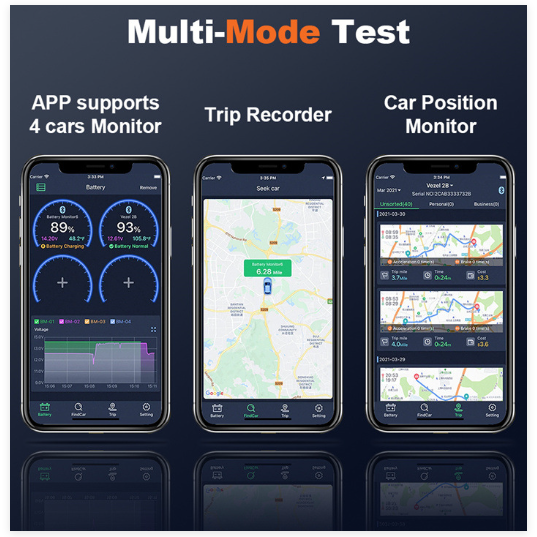

  • Trip Tracking: Records trip tracks, costs and driving habits, with data export available in Excel format.
  • Parking Position Recording: Automatically records the vehicle's parking position to help guide you back to the vehicle.
  • Multi-Device Support: Allows up to 4 devices to be viewed on one page.
  • Track Recording Control: The track recording function can be manually switched on or off.
  • Built-In Protection: Includes a recoverable fuse, reverse connection protection and short-circuit protection.
  • IP67 Waterproof Rating: Designed with an IP67-rated housing for added protection against dust and water.
  • Free App & Firmware Updates: Supports free app downloads and firmware upgrades.
  • Compact Design: Measures only 55 x 41 x 12.5mm for convenient installation.

Specifications:

  • Brand: ANCEL
  • Model: BM200
  • Product Type: Battery Monitor
  • Bluetooth Version: 4.2
  • Bluetooth Name: BM200
  • Input Voltage: DC 6V-20V
  • Voltage Accuracy: ±0.03V at 9V-16V
  • Average Working Current: 1.5mA
  • Working Temperature: -40°C to 90°C (-40°F to 194°F)
  • Reverse Connection Protection: Built in
  • Short-Circuit Protection: Built in
  • Waterproof Rating: IP67
  • Dimensions: 55 x 41 x 12.5mm

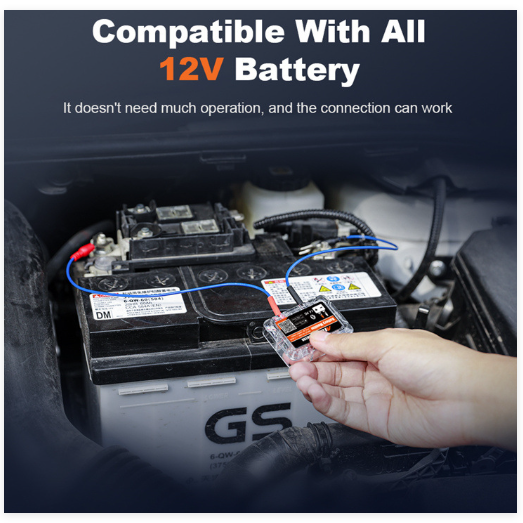

  • Compatible Batteries: 12V lead-acid and LiFePO4 vehicle starting batteries

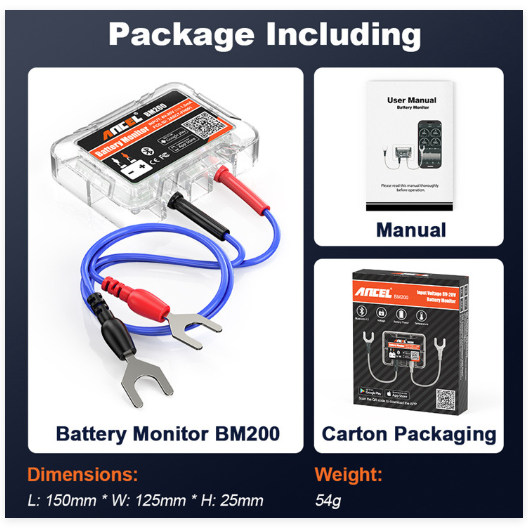

Package Includes:

  • 1 x ANCEL BM200 Battery Monitor
  • 1 x User Manual

Frequently Asked Questions

What is the ANCEL BM200 used for?

The ANCEL BM200 is a Bluetooth battery monitor that tracks battery voltage, charge percentage and temperature while also monitoring the vehicle's starting and charging systems.

What voltage range does the BM200 support?

The BM200 supports a DC input voltage range of 6V to 20V and is suitable for monitoring 12V vehicle starting batteries.

What types of batteries are compatible with the BM200?

The BM200 is designed for 12V lead-acid and LiFePO4 starting batteries used in vehicles.

Can I monitor the battery from my phone?

Yes. The BM200 uses Bluetooth 4.2 and can connect to the compatible app for viewing battery information and historical data.

What battery information can it display?

The device can display real-time battery voltage, charge percentage and temperature.

How long does the BM200 store historical data?

The device can store historical voltage, charge percentage and temperature data for up to 30 days.

Can the BM200 monitor the vehicle's charging system?

Yes. It can automatically monitor the vehicle's starting and charging systems and notify the user if an abnormal condition is detected.

Can multiple BM200 devices be monitored?

Yes. The system supports multiple devices, allowing up to 4 devices to be viewed on one page.

Is the ANCEL BM200 waterproof?

Yes. The BM200 has an IP67 waterproof rating.

What are the dimensions of the BM200?

The battery monitor measures 55 x 41 x 12.5mm.

What protection features does it have?

The BM200 includes built-in reverse connection protection, short-circuit protection and a recoverable fuse.

What is included with the ANCEL BM200?

The package includes 1 x ANCEL BM200 Battery Monitor and 1 x User Manual.
