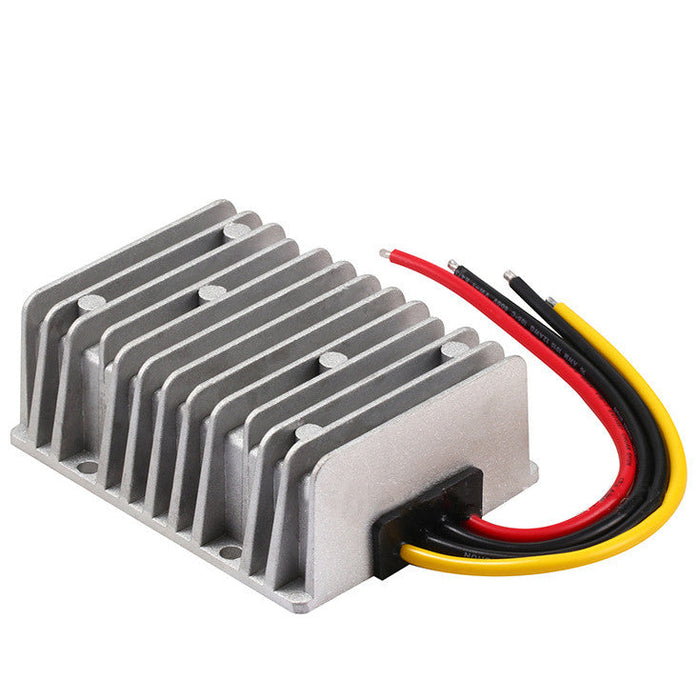

24V to 12V DC/DC Converter Regulator 30A 360W

Convert 24V DC input to 12V DC output with this high-capacity 30A 360W DC/DC step-down converter. Using synchronous rectification for efficient power conversion and low heat generation, it provides a regulated 12V output for compatible electrical systems. Built-in protection against over-voltage, over-current, over-temperature and short circuits helps protect the converter during operation, while the aluminium housing provides a durable enclosure and supports heat dissipation.

Features:

• 24V to 12V Step-Down Conversion: Converts DC 24V input to a regulated DC 12V output.

• 30A / 360W Output: Provides up to 30A and 360W of output power.

• Efficient Power Conversion: Synchronous rectification delivers a conversion rate of up to 93% with low heat generation.

• Multiple Protection Functions: Automatically protects against over-voltage, over-current, over-temperature and short circuits.

• Automatic Recovery: Designed to return to normal operation when protected conditions are restored.

• Stable Output: Provides a DC 12V output with a stated tolerance of ±0.25V.

• Wide Operating Temperature: Suitable for temperatures from -40°C to 80°C.

• Aluminium Housing: Durable aluminium shell helps with protection and heat dissipation.

• High-Load Cooling Guidance: When operating above 40°C or close to the maximum output, lower the power load or improve heat dissipation.


Specifications:

• Product Type: DC/DC Step-Down Converter Regulator

• Input Voltage: DC 24V

• Output Voltage: DC 12V ±0.25V

• Maximum Output Current: 30A

• Maximum Output Power: 360W

• Conversion Efficiency: Up to 93%

• Working Temperature: -40°C to 80°C

• Full Load Temperature Rise: 50°C

• Load Regulation: ±1%

• Voltage Regulation: ±2%

• Minimum Pressure: 2V

• Housing Material: Aluminium

• Protection: Over-voltage, over-current, over-temperature and short-circuit protection


Important Notes:

• Ensure the input power supply provides sufficient voltage and power for the required output.

• Use an appropriate average load and avoid combining multiple output cables at the output port.

• Ensure adequate cooling when operating at or near the maximum 30A output current.

• When the ambient temperature is above 40°C, reduce the power load or improve heat dissipation.

• Follow the indicated wiring polarity carefully.

• Fuse the input supply as appropriate for the installation.

• Do not reverse the input polarity, as this may damage the converter.

• Check output polarity carefully, as incorrect polarity may damage connected electrical equipment.


Package Includes:

• 1 x 24V to 12V DC/DC Converter Regulator
