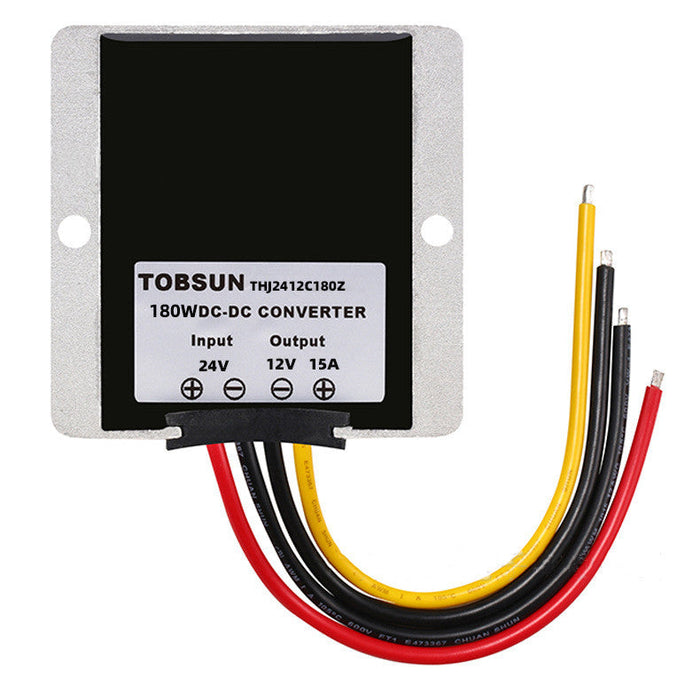

24V to 12V DC/DC Converter Regulator 15A 180W – Step-Down Power Converter

Convert 24V DC input to 12V DC output with this compact 15A 180W DC/DC step-down converter. Designed with synchronous rectification for efficient power conversion and low heat generation, it features automatic protection against over-voltage, over-current, over-temperature and short circuits. The durable aluminium housing and IP68-rated design make it suitable for a range of automotive, marine, industrial and electrical applications.

Features:

• 24V to 12V Step-Down Conversion: Converts DC 24V input voltage to a stable DC 12V output.

• 15A / 180W Output: Supports up to 15A output and 180W of power.

• High Conversion Efficiency: Synchronous rectification provides a conversion rate of up to 93% with low heat generation.

• Multiple Protection Functions: Includes protection against over-voltage, over-current, over-temperature and short circuits.

• Automatic Recovery: Designed to return to normal operation once protected conditions are restored.

• Wide Operating Temperature: Suitable for operating temperatures from -40°C to 80°C. When temperatures exceed 40°C, reduce the power load or improve heat dissipation.

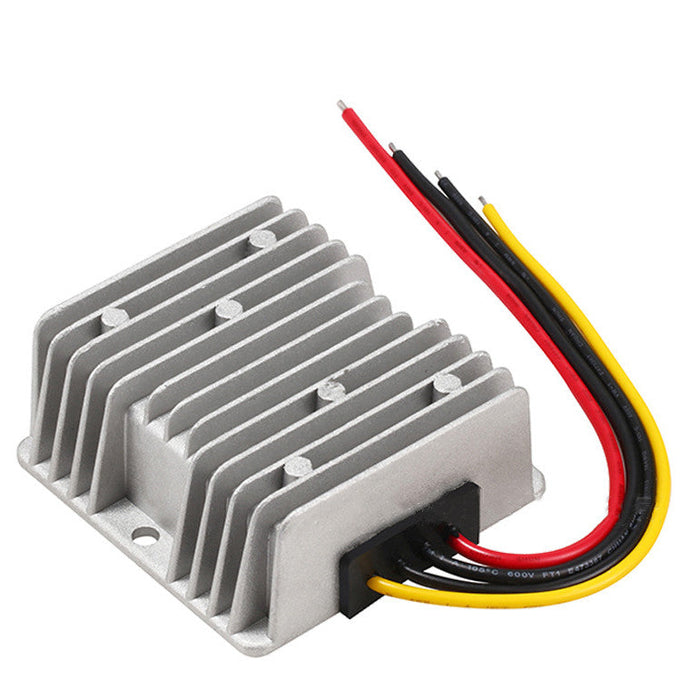

• Durable Aluminium Housing: Features an aluminium shell for durability and heat dissipation.

• IP68 Rated: Designed with an IP68-rated enclosure for protection against dust and water ingress.

• Compact Design: Measures just 74 x 74 x 32mm for convenient installation in space-limited applications.


Specifications:

• Type: DC/DC Step-Down Converter Regulator

• Input Voltage: DC 24V

• Output Voltage: DC 12V

• Maximum Output Current: 15A

• Maximum Output Power: 180W

• Conversion Efficiency: Up to 93%

• Working Temperature: -40°C to 80°C

• Full Load Temperature Rise: 50°C

• Load Regulation: ±1%

• Voltage Regulation: ±2%

• Minimum Pressure: 2V

• Housing Material: Aluminium

• Protection Rating: IP68

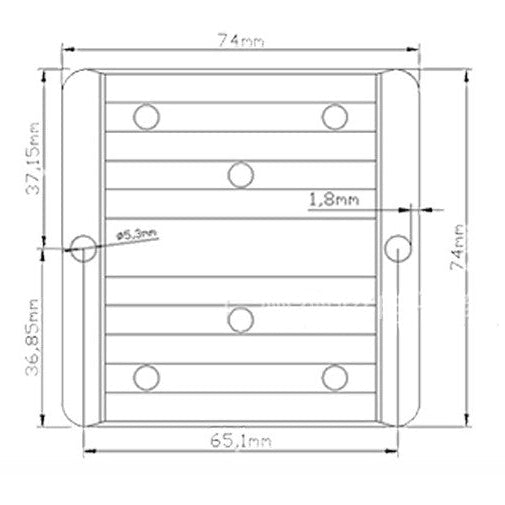

• Dimensions: 74 x 74 x 32mm


Important Notes:

• Ensure the input power supply provides sufficient voltage and power for the required output.

• Use an appropriate average load and avoid combining multiple output cables at the output port.

• Ensure adequate cooling when operating close to the maximum 15A output current.

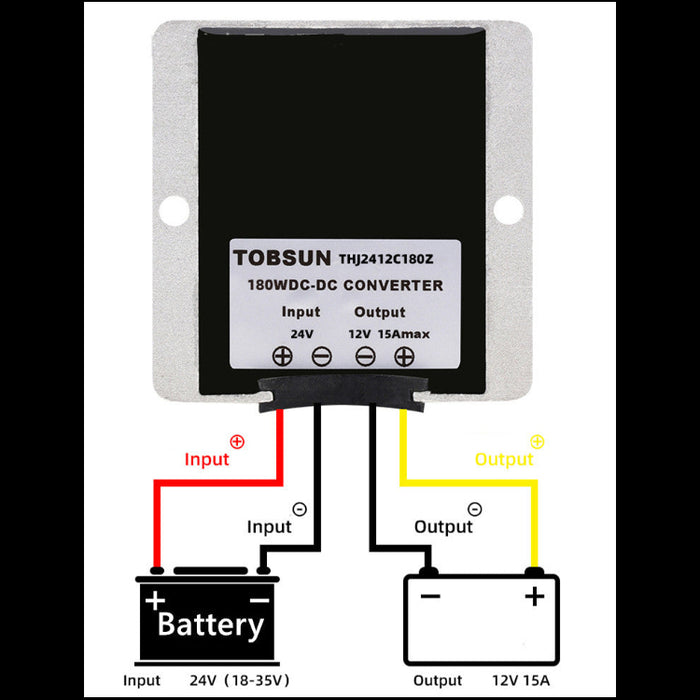

• Follow the correct wiring polarity carefully.

• Fuse the input supply as appropriate for the installation.

• Do not reverse the input polarity, as this may damage the converter.

• Check output polarity carefully, as incorrect polarity may damage connected electrical equipment.


Package Includes:

• 1 x 24V to 12V DC/DC Converter Regulator
