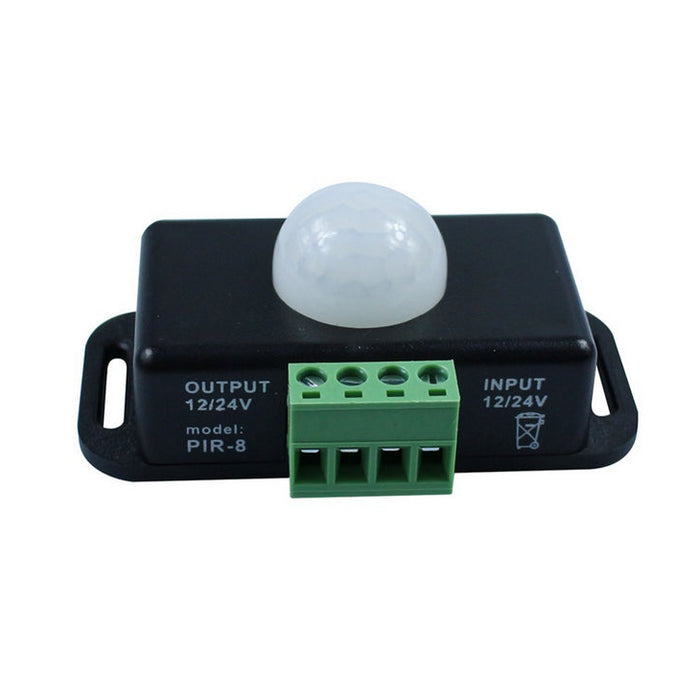

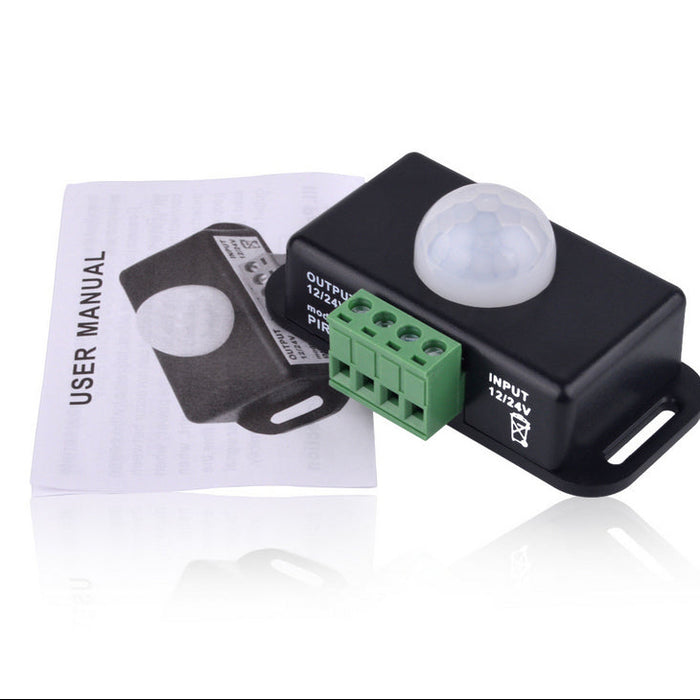

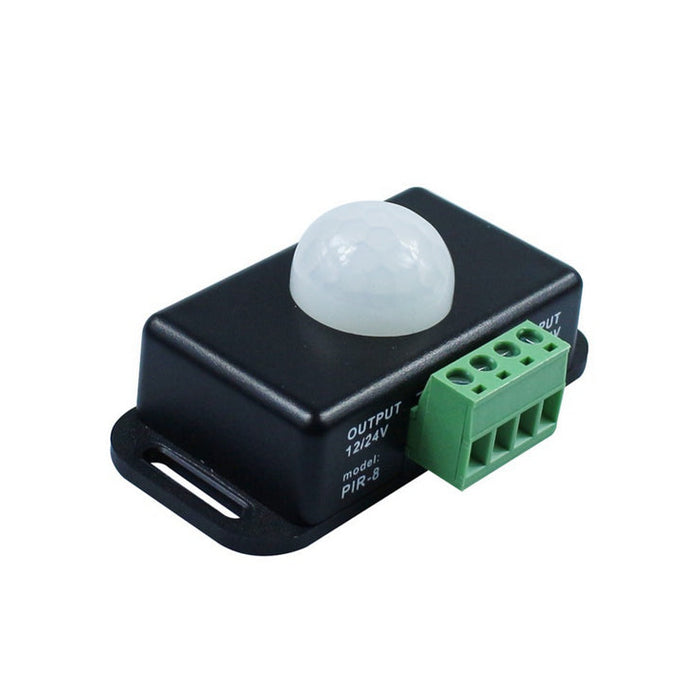

12V/24V DC PIR Motion Sensor Switch
Automate your lighting with this 12V/24V PIR motion sensor switch. Designed to detect human movement and automatically switch compatible LED lights and strips on or off, it is a convenient solution for hands-free lighting in homes, cabinets, hallways and other suitable areas.
Features:
- Automatic Motion Detection: Uses passive infrared (PIR) technology to detect human movement and activate connected lighting.
- 12V/24V DC Compatible: Designed to work with 12V or 24V DC lighting systems.
- Adjustable Delay Time: Set the automatic switch-off delay from 1 to 10 minutes according to your needs.
- Wide Detection Range: Detects movement from up to approximately 8 metres away with a 60° detection angle.
- Suitable for LED Lighting: Mainly designed for LED lamps and LED strip lights, with applications for other compatible loads.
- Easy Installation: Compact design makes the controller simple to install and use in suitable locations.
- Stable Lighting Control: Designed to provide smooth light switching without flickering when used with compatible lighting systems.
Specifications:
- Product Type: PIR Motion Sensor Switch
- Material: Plastic + Metal
- Input Voltage: 12V / 24V DC
- Output Voltage: 12V / 24V DC
- Maximum Output Current: <6A
- Maximum Detection Distance: 8m
- Detection Angle: 60°
- Adjustable Delay Time: 1–10 minutes
- Working Temperature: -20°C to +60°C
- Dimensions: 76 × 45 × 34mm
- Application: LED Lights, LED Strip Lights and Other Compatible Loads
Package Includes:
- 1 × LED PIR Sensor Controller
Frequently Asked Questions
What is this PIR motion sensor switch used for?
This PIR sensor controller detects human movement using infrared technology and can automatically control compatible 12V or 24V DC lighting.
What voltage does the sensor support?
The sensor supports both 12V DC and 24V DC input and output voltage systems.
How far can the PIR sensor detect movement?
The maximum stated induction distance is approximately 8 metres, with a detection angle of 60 degrees.
Can I adjust how long the light stays on?
Yes. The delay time can be adjusted from approximately 1 to 10 minutes.
Can this sensor be used with LED strip lights?
Yes. It is primarily designed for controlling compatible LED lamps and LED strip lighting operating at 12V or 24V DC.
What is the maximum output current?
The listed output current is less than 6A. Make sure the connected lighting load is compatible with the controller specifications.
What temperatures can the sensor operate in?
The stated working temperature range is -20°C to +60°C.
What are the dimensions of the PIR sensor controller?
The controller measures approximately 76 × 45 × 34mm.
