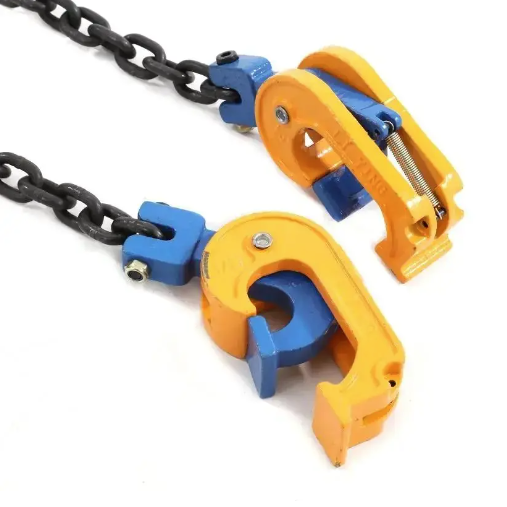

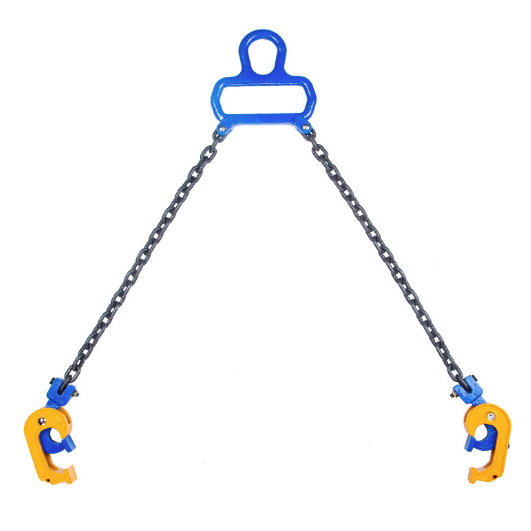

1T Heavy-Duty Drum Lifting Clamp with Steel Chain
Lift and handle compatible drums more efficiently with this heavy-duty drum lifting clamp and chain assembly. With a 1,000kg double-clamp working load limit, safety latch and anti-rotating design, it is suited to compatible lifting applications using a crane, electric hoist or chain block.
Features:
- 1,000kg Double-Clamp Capacity: The set has a stated working load limit of 1,000kg when used as a double clamp, with a single clamp rated at 500kg.

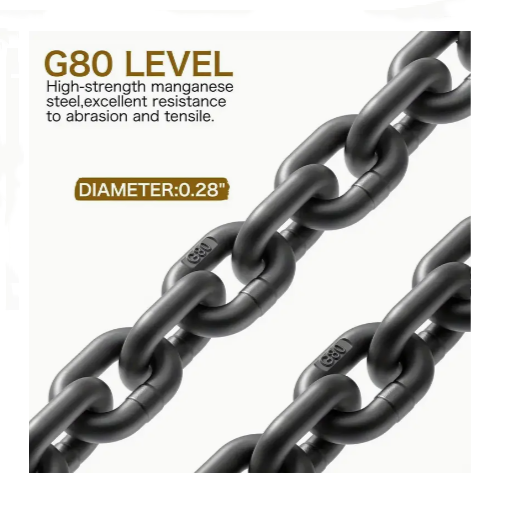

- Heavy-Duty Steel Chain: Includes a durable 6.3mm diameter steel chain designed for lifting applications.
- Safety Latch: The lifting clamp incorporates a safety mechanism designed to help maintain a secure grip during lifting.
- Anti-Rotating Design: Designed to help reduce unwanted drum rotation while the load is being lifted.

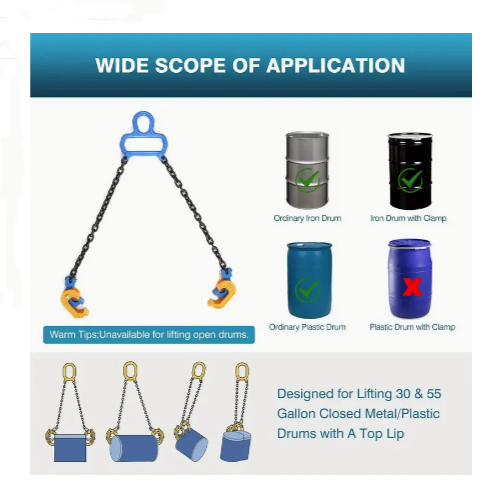

- Wide Drum Applications: Suitable for compatible steel and plastic drums, including drums with different shapes or configurations, subject to proper clamping and load limits.
- Compatible with Lifting Equipment: Designed for use in applications involving cranes, electric hoists and chain blocks.
- One-Hand Upright Operation: The product is designed to allow upright lifting operation with one-hand positioning when the spring mechanism is engaged and functioning correctly.
Specifications:
- Product Type: Drum Lifting Clamp with Chain
- Working Load Limit, Single: 500kg
- Working Load Limit, Double: 1,000kg
- Chain Diameter: 6.3mm
- Chain Length: 500mm
- Master Link Diameter: 13mm
- Master Link Inside Width: 62mm
- Master Link Inside Length: 87mm
- Reach: 670mm
- Approx. Weight: 3.4kg
Package Includes:
- 1 × Drum Lifting Clamps with Chain – 1T
Important Safety Note: Never exceed the stated Working Load Limit. Inspect the clamp, chain, latch and attachment points before every use. Only use with compatible drums and suitable rated lifting equipment. Ensure the clamp is correctly positioned and securely engaged before lifting. Follow applicable workplace lifting regulations and the manufacturer's instructions.
Frequently Asked Questions
What is the lifting capacity of this drum clamp?
The stated Working Load Limit is 500kg for a single clamp and 1,000kg when used as a double-clamp setup.
What types of drums can the lifting clamp be used with?
The drum lifter is designed for compatible steel and plastic drums and certain shaped or modified steel containers. Always confirm that the drum and clamp configuration are suitable before lifting.
Can this drum lifter be used with a crane or chain block?
Yes. It is designed for lifting applications using equipment such as cranes, electric hoists and chain blocks, provided the lifting equipment and setup are appropriately rated.
What size is the lifting chain?
The included chain is approximately 6.3mm in diameter and 500mm long.
Does the drum clamp have a safety latch?
Yes. The lifting clamp features a safety latch mechanism designed to help secure the clamp during lifting.
What is the reach of the drum lifting clamp?
The stated reach is approximately 670mm.
How much does the drum lifting clamp weigh?
The approximate product weight is 3.4kg.
Can I lift more than 1,000kg with this drum lifter?
No. The stated maximum Working Load Limit is 1,000kg for the double-clamp configuration. Never exceed the manufacturer's rated capacity.
What should I check before using the drum lifting clamp?
Inspect the clamp, chain, master link, safety latch and drum attachment point for damage or wear. Confirm the load is within the rated capacity and ensure the clamp is correctly positioned and securely engaged before lifting.
